The oil pump is a crucial component of your Land Rover’s engine, ensuring proper lubrication and preventing excessive wear. Installing and maintaining the oil pump correctly is essential for the longevity and performance of your vehicle. Follow this guide for installation and maintenance.
Part 1: Installing a Land Rover Oil Pump
Tools and Materials Needed
New Land Rover-compatible oil pump
Socket wrench set
Torque wrench
Oil pan
Engine oil
Gasket sealant (if required)
Cleaning rags
Step-by-Step Installation Guide
1. Prepare the Vehicle
Park the Land Rover on a flat surface and let the engine cool.
Disconnect the negative battery terminal to prevent accidental starts.
Drain the engine oil by removing the oil pan drain plug and collecting the oil in a container.
2. Remove the Old Oil Pump
Remove the oil pan by unbolting it.
Locate the oil pump, typically near the crankshaft.
Unbolt the oil pump from the engine block and carefully remove it.
Check the oil pickup tube for debris or clogging and clean it if necessary.
3. Install the New Oil Pump
Compare the new oil pump with the old one to ensure compatibility.
Apply a thin layer of engine oil to the new pump’s gears to prevent dry startup.
Install the new oil pump in place and secure it with bolts. Use a torque wrench to tighten them to the manufacturer’s specifications.
If required, replace the oil pump gasket or apply a sealant to prevent leaks.
4. Reassemble and Refill Oil
Reattach the oil pickup tube and reinstall the oil pan.
Tighten all bolts securely.
Refill the engine with the recommended grade of oil.
Reconnect the battery and start the engine to check for leaks and ensure proper oil pressure.
Early warning signs of AJ200 oil pump failure are found to include abnormal noise, drop in oil pressure, insufficient engine cooling, oil leaks, and unstable engine idle.
Abnormal Noise: If the internal parts of the oil pump are worn or loose, it may produce a metallic knocking or buzzing sound, which is an obvious sign of oil pump failure.
Decreased oil pressure: When the function of the oil pump is impaired, it may not be able to provide sufficient lubrication to the engine, resulting in a drop in the pressure shown on the oil pressure gauge, which is an immediate warning sign.
Insufficient engine cooling: The oil pump is responsible for driving the circulation of oil, and if there is a problem with the pump body, it may lead to insufficient cooling of the engine, resulting in engine overheating.
Oil leaks: If you notice a leak in the oil sump, it could be a failure of the oil pump seals or damage to the pump body, which is a sign that it needs to be replaced or repaired in a timely manner.
Erratic engine idling: A malfunctioning oil pump may lead to an uneven fuel mixture, and the engine may shudder or have difficulty accelerating at idle, which is also a sign of oil pump failure. It may also be accompanied by other symptoms such as an unusual shrill sound from the engine, illumination of the engine malfunction light on the dashboard, emission of a large amount of black smoke from the exhaust pipe, irregular shuddering of the engine, or the need for multiple attempts at starting.
All of these signs indicate that the oil pump may not be able to smoothly deliver oil from the sump under pressure to the various oil passages and filters, thus threatening the smooth running and proper functioning of the engine.
Land Rover's latest innovations in oil pump technology are characterised by technical improvements to the variable flow oil pump and piston cooled oil injectors.

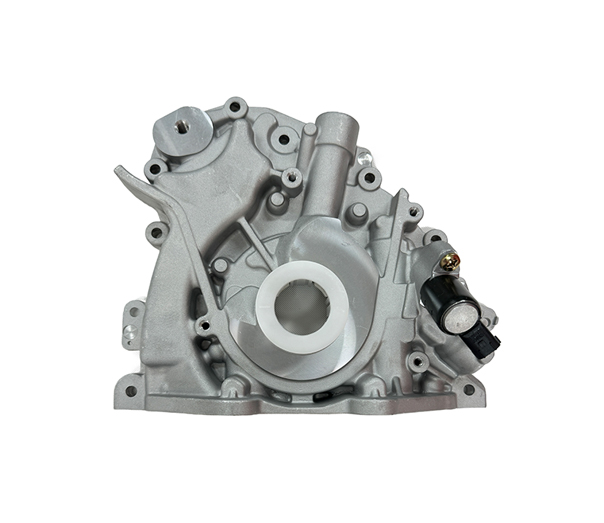

Variable flow oil pump: Land Rover engines are fitted with a variable flow oil pump with integral vacuum pump, featuring volumetric flow control that varies output according to engine load and speed. This oil pump has a vane pump design with displacement control via an eccentrically mounted control ring and calibrated control spring. The oil pump's vane-type vacuum pump is connected in series with the oil pump to provide vacuum to the brake booster, while air is introduced from the brake booster through vacuum hoses and ports in the cylinder block to ensure proper operation of the braking system.
Piston Cooling Oil Injectors: Piston cooling oil injectors are located in the cylinder block, each in close proximity to a cylinder and secured by a bolt in the cylinder block. These injectors provide cooling and lubrication to the piston and piston pin, and each injector has a single outlet nozzle that injects oil into the cooling chamber in the piston. Piston cooling injector solenoid valves, controlled by the PCM, turn the oil supply on and off depending on engine speed and load, improving the heating process and reducing emissions. This design improves engine efficiency and durability.
These technological innovations not only improve the performance and efficiency of Land Rover vehicles, but also reduce emissions by optimising the use and management of oil to meet increasingly stringent environmental standards.
