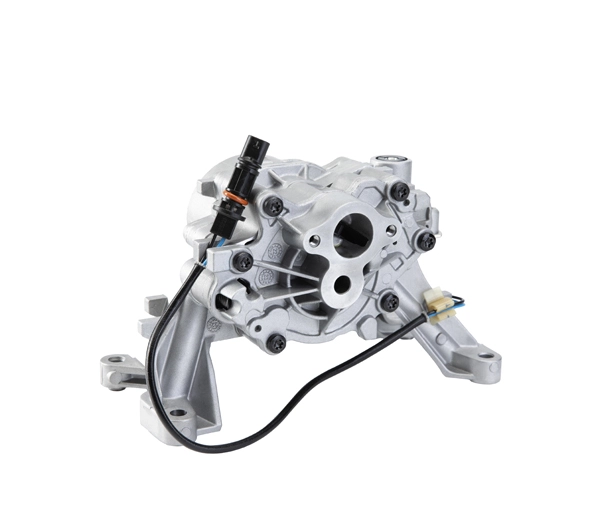

An automotive oil pump comprises several essential components designed to ensure optimal engine lubrication and performance. The pump housing provides the structural framework for the pump. Inside, the rotor and gear assembly create the necessary pressure to circulate oil throughout the engine. The drive shaft connects the pump to the engine, enabling its operation. A pressure relief valve maintains the appropriate oil pressure, preventing potential damage. Additionally, the Suction pipe draws oil from the oil pan, while the filter removes contaminants. Together, these components ensure effective lubrication, cooling, and protection of engine parts.
The working principle of an engine oil pump primarily involves the operation of a gear-type oil pump. When the engine is running, the drive gear on the camshaft drives the transmission gear of the engine oil pump, causing the driving gear fixed on the drive shaft to rotate. This, in turn, drives the driven gear to rotate in the opposite direction. This process moves the engine oil from the intake chamber along the gear mesh and pump wall to the discharge chamber, creating a low-pressure area that generates suction. This suction draws the engine oil from the oil pan into the oil chamber. As the driving and driven gears continuously rotate, the engine oil is continually pumped to the required locations. This operation ensures that engine oil is constantly circulated through the lubrication system, providing the necessary lubrication for the engine.
The engine oil pump is an important part of the internal combustion engine, responsible for performing a series of critical functions to ensure the normal operation and life of the engine.
Its main functions include:
Lubrication: As the engine runs, the oil pump draws oil from the oil pan and delivers it to the moving parts of the engine. This oil forms a thin film between these parts, minimizing direct metal-to-metal contact and friction to the lowest possible level. This lubrication process ensures smooth operation of the moving components, helps prevent excessive wear, thus enabling the engine to operate efficiently and extending its overall lifespan.
Cooling: During operation, the internal combustion engine generates a large amount of heat. The oil pump ensures that the engine oil reaches critical areas and absorbs heat from the hot parts of the engine. As the oil flows through these areas, it takes away excess heat, prevents overheating, and keeps the engine within the optimal temperature range.
Removal of Debris and Contaminants: Internal combustion engines operate in harsh environments, where dust, metal particles, and other contaminants can enter the working parts of the engine. The engine oil pump plays a vital role in clearing debris and contaminants from the engine.
Maintain optimal engine performance: By regulating engine temperature, the oil pump contributes to enhancing engine performance and preventing potential damage caused by thermal issues.
